Custom headers allow you to add authentication, routing information, and metadata to requests sent to your AI backend integrations.

​
Why Use Custom Headers?

Headers enable:
  • Authentication: API keys, bearer tokens, OAuth
  • Routing: Direct requests to specific endpoints or versions
  • Tracking: Add identifiers for analytics and logging
  • Feature Flags: Enable/disable features per request
  • Custom Metadata: Pass any additional information to your backend

​
Adding Headers

1

Open Integration Settings

Navigate to your integration and click Edit or create a new integration.
2

Scroll to Headers Section

Find the Headers configuration section.

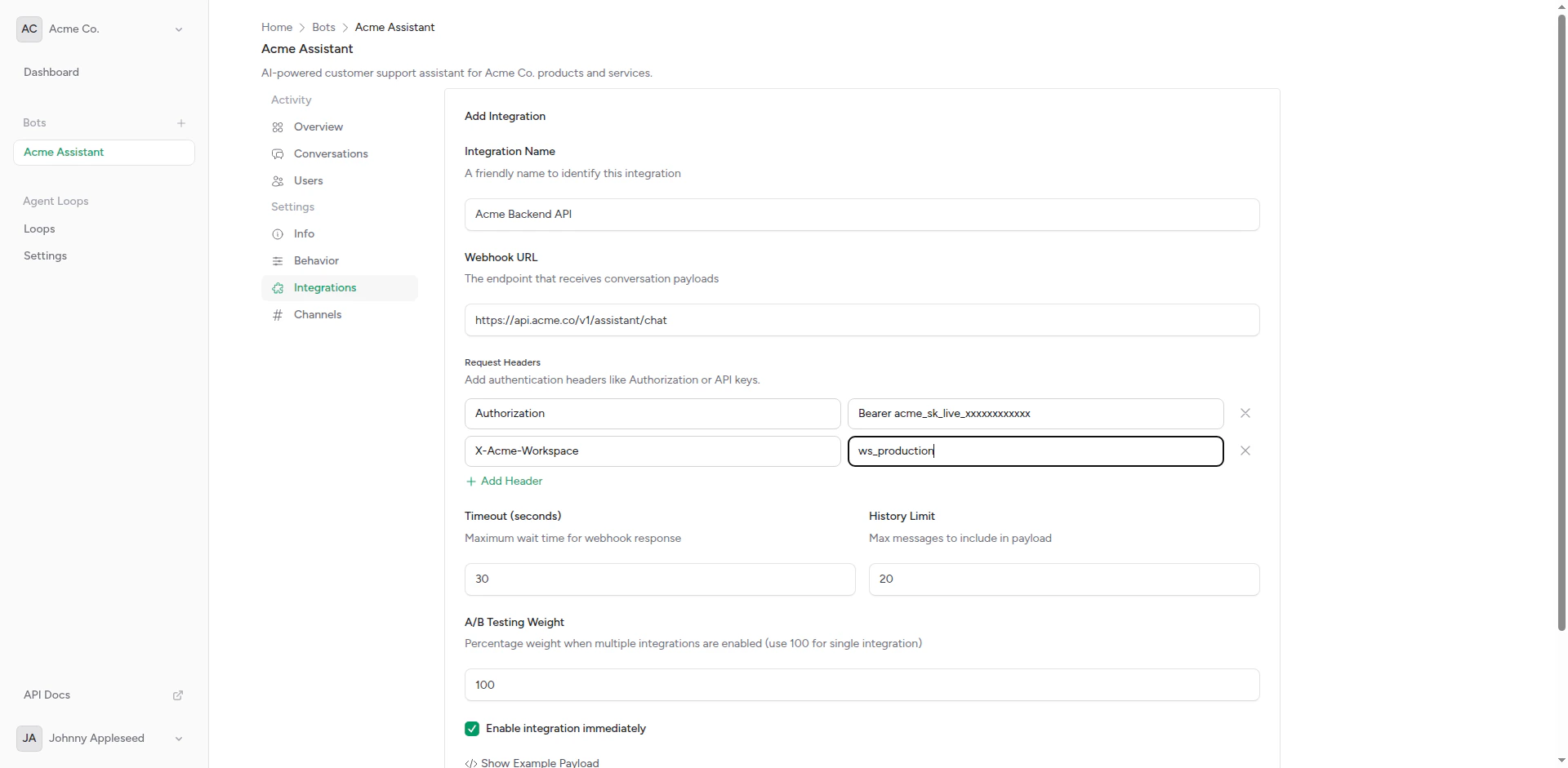

Custom headers configuration
3

Add Header Pairs

Enter header name and value pairs:
Name: Authorization
Value: Bearer sk-proj-abc123...
4

Add More Headers

Click Add Header to include additional headers.
5

Save

Click Save to apply the configuration.

​
Common Header Patterns

​
Authentication Headers

Bearer Token:
Authorization: Bearer sk-proj-abc123xyz...
API Key:
X-API-Key: your-api-key-here
Basic Auth:
Authorization: Basic base64(username:password)

​
API-Specific Headers

OpenAI:
Authorization: Bearer sk-proj-...
Content-Type: application/json
Anthropic:
x-api-key: sk-ant-...
anthropic-version: 2023-06-01
Content-Type: application/json
Custom Service:
Authorization: Bearer YOUR_TOKEN
X-Service-Version: v2
X-Client-ID: chatbot-platform

​
Tracking and Analytics

Request Identification:
X-Request-ID: unique-request-id
X-Bot-ID: bot_123
X-Team-ID: team_456
User Context:
X-User-Platform: telegram
X-User-Tier: premium
X-Conversation-ID: conv_789

​
Feature Flags

Enable Features:
X-Enable-Streaming: true
X-Enable-Tools: true
X-Max-Tokens: 1000

​
Dynamic Headers

Some headers are automatically added by the platform:

​
Platform-Added Headers

X-Chatbot-Platform-Version: 1.72.4
X-Bot-ID: bot_abc123
X-Integration-ID: int_xyz789
User-Agent: ChatbotPlatform/1.0
These are included in every request and cannot be overridden.

​
Request-Specific Headers

The platform may add context-specific headers:
X-Conversation-ID: conv_abc123
X-User-Platform: telegram
X-Message-Count: 5

​
Security Best Practices

Never expose API keys in client-side code. Headers are configured server-side and never exposed to end users.

​
Protecting API Keys

Do:
  • Use environment variables for sensitive values
  • Rotate keys regularly
  • Use separate keys for development and production
  • Restrict key permissions to minimum required
Don’t:
  • Hardcode keys in application code
  • Share keys in documentation or screenshots
  • Use the same key across multiple services
  • Grant excessive permissions to API keys

​
Header Validation

Your backend should validate:
  • Authentication: Verify token is valid and not expired
  • Authorization: Check token has required permissions
  • Origin: Optionally verify requests come from Chatbot Platform
  • Rate Limiting: Implement per-key rate limits

​
Advanced Use Cases

​
Multi-Environment Setup

Use different headers for different environments: Development Integration:
Authorization: Bearer dev-key-...
X-Environment: development
Production Integration:
Authorization: Bearer prod-key-...
X-Environment: production

​
A/B Testing with Headers

Identify which variant is being tested: Integration A:
Authorization: Bearer key...
X-AB-Test-Variant: A
X-Model: gpt-4
Integration B:
Authorization: Bearer key...
X-AB-Test-Variant: B
X-Model: claude-3-5-sonnet
Your backend logs can track performance by variant.

​
User Tier Routing

Route premium users to better models:
Authorization: Bearer key...
X-User-Tier: ${user.tier}
X-Max-Quality: high
Your backend reads X-User-Tier and selects appropriate model.

​
Custom Timeout Headers

Some APIs support custom timeout headers:
Authorization: Bearer key...
X-Timeout-Seconds: 45
X-Max-Retries: 3

​
Testing Headers

​
View Request Headers

Use request inspection tools to verify headers are sent:
  1. Webhook.site: Create a temporary endpoint
  2. RequestBin: Capture and inspect requests
  3. Your Backend Logs: Log incoming headers
Example with webhook.site:
1

Create Test Endpoint

Go to webhook.site and copy your unique URL.
2

Configure Integration

Create a test integration with your webhook.site URL and add headers.
3

Send Test Message

Trigger a message to the bot.
4

Inspect Request

Check webhook.site to see all headers sent.

​
Verify Authentication

Test that authentication works:
# Test your endpoint with headers
curl -X POST https://your-api.com/webhook \
  -H "Authorization: Bearer YOUR_KEY" \
  -H "X-Custom: value" \
  -d '{"messages": [{"role": "user", "content": "test"}]}'
Expected: 200 OK response If 401/403: Check header format and key validity

​
Troubleshooting

​
Headers Not Working

If your backend doesn’t receive headers: Check:
  • Header names are spelled correctly (case-sensitive)
  • No extra whitespace in names or values
  • Headers are saved in integration settings
  • Your backend logs incoming headers

​
Authentication Fails

If you get 401 errors: Common Issues:
  • API key is incorrect or expired
  • Header name is wrong (e.g., X-API-Key vs. Authorization)
  • Token format is wrong (missing Bearer prefix)
  • Key doesn’t have required permissions
Solutions:
  • Verify key in your AI service dashboard
  • Check API documentation for correct header format
  • Test with curl before configuring in platform
  • Generate a new API key if needed

​
Headers Are Cut Off

If header values are truncated:
  • Check for length limits (usually 8KB total)
  • Very long tokens may need to be split
  • Use shorter identifiers where possible

​
Header Limits

Be aware of these limits:
LimitValue
Max Headers50 per integration
Max Header Name Length256 characters
Max Header Value Length8KB
Total Headers Size16KB
These limits are generous and should accommodate all standard use cases.

​
Examples by Platform

​
OpenAI Chat Completions

Authorization: Bearer sk-proj-...
Content-Type: application/json
OpenAI-Organization: org-...

​
Anthropic Messages API

x-api-key: sk-ant-...
anthropic-version: 2023-06-01
Content-Type: application/json

​
Google Vertex AI

Authorization: Bearer ya29...
X-Goog-User-Project: project-id
Content-Type: application/json

​
Azure OpenAI

api-key: your-azure-key
Content-Type: application/json

​
Hugging Face

Authorization: Bearer hf_...
X-Wait-For-Model: true
Content-Type: application/json

​
Next Steps

Webhook Setup

Complete integration configuration

A/B Testing

Test headers with multiple integrations
